| Parameter | Engineering Specification | Design Target / Compliance |
| Net Dimensions | 12700 mm (L) x 1070 mm (H) | Official ITF Tournament Rule Standard |
| Mesh Configuration | 40 mm x 40 mm Square Mesh (Full Double-Layer) | Anti-Distortion Structural Grid |
| Netting Material | High-Density Polyethylene (HDPE) with UV Inhibitors | Weatherproof Structural Polyurethane Base |
| Yarn Breaking Strength | Target $\ge$ 135 kg per individual strand | High-Impact Ball Velocity Absorption |
| Headband System | 4-Layer Lock-Stitched Heavy-Duty PVC Fabric | Tensile Threshold Target $\ge$ 320 kg |
| Main Tension Cable | 5 mm PVC-Coated Galvanized Steel Wire Rope | Anti-Sag Mechanical Tension Retention |
| Included Hardware Kit | Heavy-Duty Center Strap & Ground Anchor Peg Kit | Complete Fixed-Substrate Anchor Interface |
| Logistics Packaging | 1-Piece Heavy-Duty Double-Wall Industrial Box | Optimized B2B Warehouse Freight Footprint |
Full Double-Layer Mechanical Weaving: Unlike nets that only double the top rows, this entire net body features continuous double-layer interlocked HDPE strands. This engineering approach eliminates localized stress failure and extends overall mesh operational lifespan under aggressive daily impact cycles.

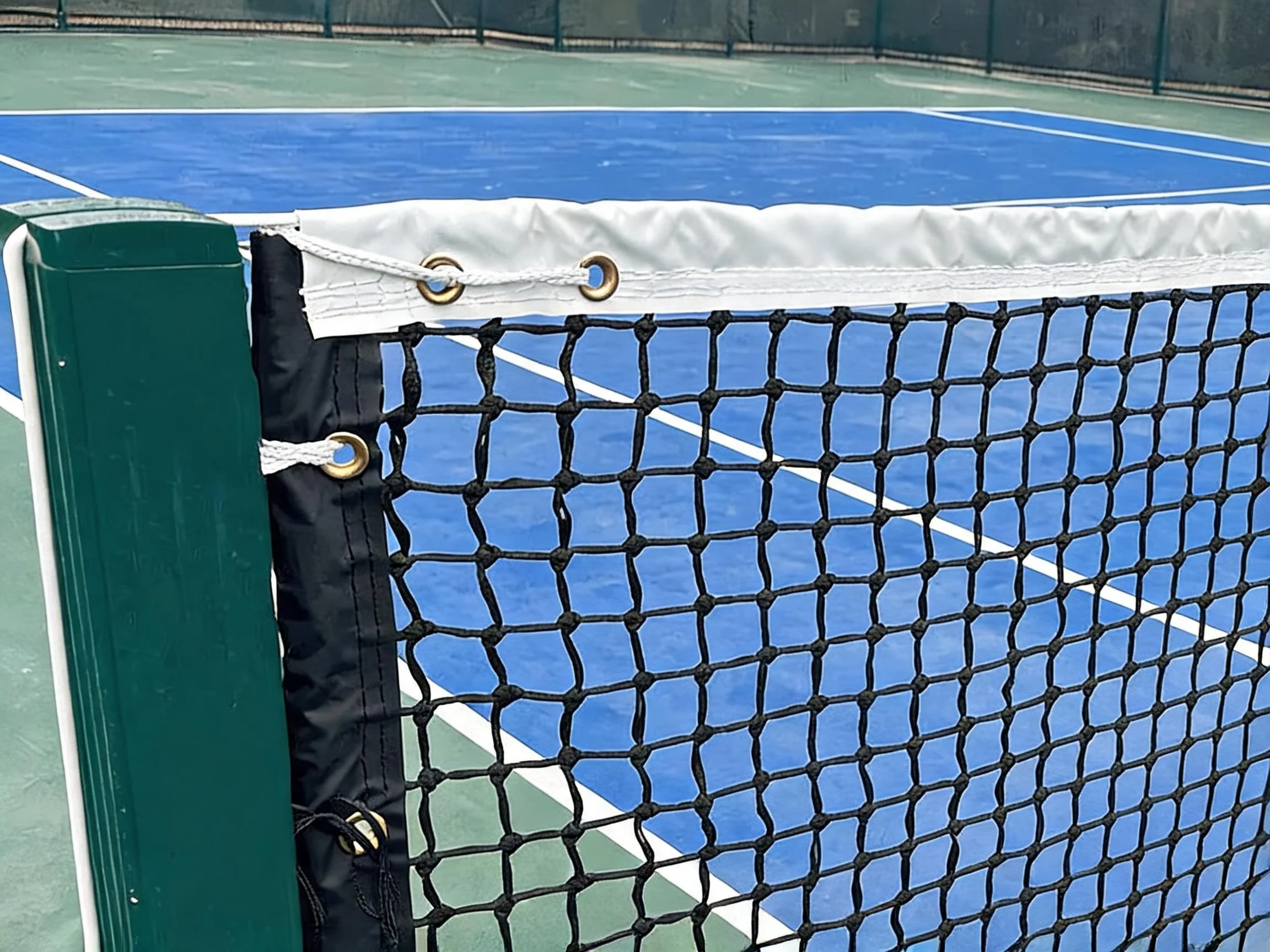

4-Layer Lock-Stitched PVC Headband: The heavy-gauge white PVC headband uses four rows of dense, lock-stitched structural thread. This construction prevents seam unravelling, side-peeling, and premature fabric breakdown caused by persistent top-cable friction.

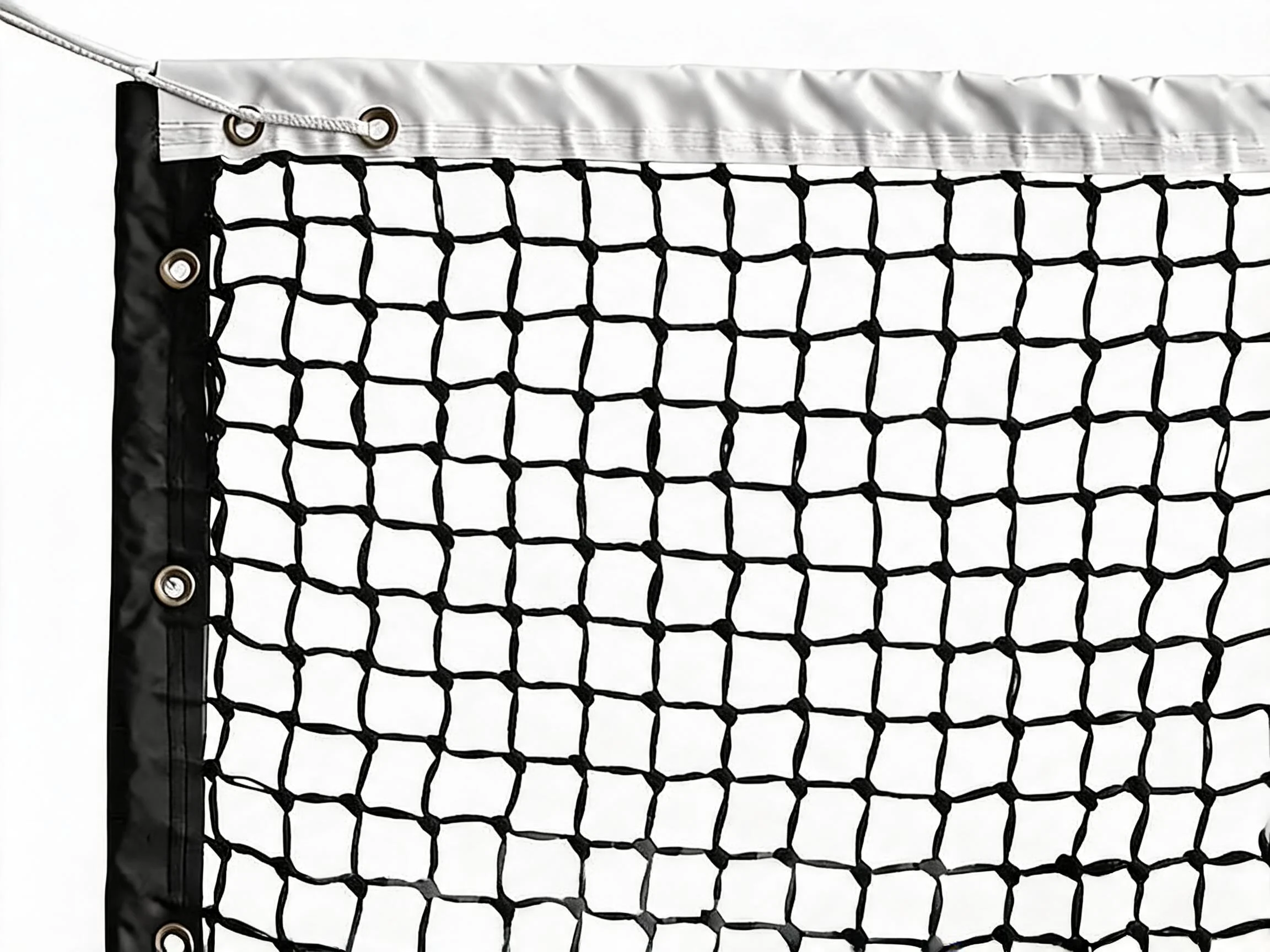

Complete Tournament-Ready Kit: Every unit ships as a complete installation asset featuring the full 12.7m netting body, a premium center strap, and high-strength ground anchoring hardware components to ensure fast court deployment.
Streamlined Tensioning Integration: The PVC-insulated galvanized steel internal wire cable interfaces cleanly with all standard commercial green or brass court winch systems, reducing setup calibration labor.
International Professional Championship Courts: Meets the exact structural presentation, dimension tolerances, and high-velocity impact resilience required for televised tennis tour infrastructure.
ATP / WTA / ITF Regional Training Centers: Delivers a reliable, high-duty-cycle asset that withstands hours of continuous professional training and aggressive baseline drills.
Luxury Tennis Country Clubs: Upgrades member facilities with pristine, deep-black structural netting that coordinates seamlessly with elite landscape architecture.
University Varsity Sports Complexes: Provides physical plant managers a long-life, heavy-duty court asset that minimizes seasonal replacement cycles.
Public Municipal Tennis Centers: Offers maximum cost-efficiency and resistance to tampering, environmental exposure, and multi-user wear in high-volume public parks.
Q: How does the internal steel wire cable maintain long-term tension without sagging over time?
A: The primary tensioning member relies on a 5mm high-tensile galvanized steel core wrapped in a smooth PVC protective sleeve. The wire rope is factory pre-stretched under dead-load conditions to eliminate initial structural creep. This prevents the net line from sagging under seasonal temperature fluxes and maintains a uniform 1070mm post height under constant tension.
Q: What is the chemical resistance of this PE material under extreme UV exposure and heavy acid rain?
A: The raw HDPE polymer pellets undergo custom compounding with carbon black and hindered amine light stabilizers (HALS). This molecular formulation ensures the extruded netting strands maintain structural tensile strength and resist chemical degradation, brittleness, and bleaching caused by high UV exposure and acidic rainfall cycles.
Q: Why does full double-layer construction cut replacement cycles by half compared to standard nets?
A: Standard nets feature single-layer mesh bodies that concentrate ball-impact kinetic energy onto individual strands, leading to premature stretching and tearing. Our full double-layer weaving pattern distributes mechanical stress across a dual-strand grid network. By sharing the load evenly, the mesh absorbs impact velocity without localized deformation, cutting facility maintenance and net replacement cycles in half.
